Effect of Size of Ramming Mass

 Effect of Size of Dry Ramming Mass

Ramming mass, also known as refractory ramming mix, is a refractory material used in various industrial applications, including the lining of furnaces, ladles, and other high-temperature equipment. The granule size of ramming mass can have several effects on its performance and properties. Here are some of the effects of granule size in ramming mass:

Advantages of Small Granule Size in Ramming Mass:

1. Higher Density: Smaller granules can pack more densely, leading to a higher overall density of the lining. This enhances the mechanical strength and thermal conductivity of the lining.

2. Reduced Porosity: The closely packed structure of small granules results in reduced porosity, which is crucial for minimizing gas and liquid penetration through the lining.

3. Better Thermal Insulation: Smaller granules create a more homogenous structure with fewer voids, resulting in improved thermal insulation and reduced heat loss.

4. Improved Erosion Resistance: Fine granules are less prone to erosion due to their closely knit arrangement, providing better resistance against the flow of molten materials.

5. Enhanced Thermal Shock Resistance: Smaller granules can contribute to improved thermal shock resistance as they minimize the potential for crack propagation during rapid temperature changes.

6. Uniformity: Small granules can lead to a more uniform lining structure, ensuring consistent performance throughout the lining's lifespan.

Disadvantages of Small Granule Size in Ramming Mass Lining:

1. Complex Installation: Handling and compacting small granules can be more challenging during installation, requiring careful attention to avoid voids and ensure proper compaction.

2. Limited Workability: Extremely small granules might reduce workability, making it harder to achieve proper compaction, especially in complex shapes and corners.

3. Higher Mixing Effort: Mixing small granules can be more labor-intensive and time-consuming due to their higher surface area, which might increase mixing energy requirements.

4. Risk of Settling and Segregation: Fine granules are more susceptible to settling and segregation during storage and transport, potentially leading to non-uniform compositions.

5. Cost: Smaller granules can increase production costs due to higher processing requirements and might also be more expensive to acquire.

Advantages of Large Granule Size in Ramming Mass Lining:

1. Easier Handling: Larger granules are often easier to handle and mix, requiring less effort during installation.

2. Faster Installation: Coarser granules can lead to faster installation due to their ease of handling and compaction.

3. Potentially Lower Cost: Larger granules can be more cost-effective to produce and might be more readily available.

Disadvantages of Large Granule Size in Ramming Mass Lining:

1. Lower Density: Coarser granules tend to result in a less densely packed lining structure, which can impact mechanical strength and thermal conductivity.

2. Increased Porosity: Larger granules can lead to increased porosity, potentially allowing greater gas and liquid penetration.

3. Reduced Insulation: The presence of larger voids in coarser granules can lead to reduced thermal insulation properties.

4. Weaker Erosion Resistance: Coarser granules might be more susceptible to erosion in high-velocity flows of molten materials.

5. Lower Thermal Shock Resistance: Larger granules could result in lower thermal shock resistance due to a higher potential for crack propagation during temperature changes.

In summary, the choice of granule size in ramming mass lining depends on factors such as the specific application, operating conditions, desired properties (thermal conductivity, mechanical strength, insulation, etc.), and installation considerations. Engineers carefully assess these factors to determine the most suitable granule size for achieving the required performance and durability of the refractory lining.

The proportion of grain (larger granules) and powder (finer particles) aggregates in ramming mass significantly influences the properties and behavior of the resulting refractory lining. The balance between these two components is crucial in achieving the desired properties for specific high-temperature applications. Here are the effects of different percentages of grain and powder aggregates in ramming mass:

The proportion of grain (larger granules) and powder (finer particles) aggregates in ramming mass significantly influences the properties and behavior of the resulting refractory lining. The balance between these two components is crucial in achieving the desired properties for specific high-temperature applications. Here are the effects of different percentages of grain and powder aggregates in ramming mass:

Higher Percentage of Grain Aggregates and Lower Percentage of Powder Aggregates:

1. Density and Strength: Increasing the proportion of grain aggregates typically leads to a denser and stronger lining due to better particle packing and interlocking.

2. Erosion Resistance: Higher grain content enhances erosion resistance, as larger granules can withstand the flow of molten materials more effectively.

3. Thermal Conductivity: The increased presence of grain aggregates might lead to higher thermal conductivity due to improved particle-to-particle contact.

4. Installation Difficulty: A higher percentage of grain aggregates can make installation more challenging, as larger particles might require more effort to achieve uniform compaction.

Higher Percentage of Powder Aggregates and Lower Percentage of Grain Aggregates:

1. Workability and Installation: Increasing the proportion of powder aggregates can improve workability during installation, especially for shaping complex structures and corners.

2. Porosity and Insulation: More powder content can result in higher porosity and improved insulation properties, but excessive porosity might compromise mechanical strength.

3. Thermal Shock Resistance: A higher percentage of powder aggregates could enhance thermal shock resistance due to reduced crack propagation between finer particles.

4. Mechanical Strength: A lower percentage of grain aggregates might lead to reduced mechanical strength, which can impact the overall structural integrity of the lining.

Balanced Percentage of Grain and Powder Aggregates:

• Striking the right balance between grain and powder aggregates aims to achieve a combination of mechanical strength, thermal shock resistance, erosion resistance, and insulation properties.

• The specific balance depends on factors such as the operating temperature, type of materials being processed, thermal cycling, and the specific requirements of the furnace or equipment.

SIZE AND SHAPE:

Quartz and Quartzite grain sizes: 12-24, 16-32, 20-40, 30-50, 30-70, 40-70

Quartz and quartzite powder mesh size: 80-200 mesh, 300 mesh, 325 mesh, 400 mesh and above

Sieve size	Percentage retention
For Cast Iron Application (0 to 4 mm)
+ 4 mm	All pass
- 4 mm + 1 mm	23 – 28
- 1 mm + 150 micron	45 – 55
- 150 micron	23 – 28
For Steel Application (0 to 7 mm)
+ 7 mm	All pass
- 7 mm + 1 mm	30 – 35
- 1 mm + 150 micron	35 – 45
- 150 micron	25 – 30

Bonding In Alumina Based Refractories

In the context of alumina refractories, spinel and silicate bonds are two types of bonding mechanisms that play a significant role in the formation and properties of these refractory materials.

Alumina-Magnesia Spinel in one of the most resistant refractory compounds.

1. Spinel Bond:

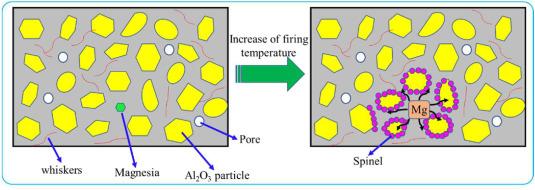

Spinel is a mineral composed of magnesium aluminate (MgAl₂O₄). In alumina refractories, spinel can form as a result of the reaction between alumina (Al₂O₃) and magnesia (MgO) at high temperatures. Spinel formation can occur in alumina-magnesia refractories or in situations where alumina and magnesia-containing materials are present in the refractory structure.

The spinel bond refers to the bonding mechanism created when spinel forms between the alumina and magnesia particles within the refractory material. This bond contributes to the overall strength and stability of the refractory lining. Spinel is known for its high thermal shock resistance, chemical stability, and mechanical strength, making it a valuable component in refractories designed for high-temperature applications.

2. Silicate Bond:

Silicate bonding involves the formation of silicate compounds between particles in the refractory material. Silicates are compounds that contain silicon (Si) and oxygen (O), often combined with other elements. In alumina refractories, silicate bonds can form when the refractory mix contains materials that release silicate compounds during heating, such as clay-based binders or additives.

Silicate bonding provides cohesion between the refractory particles, helping to hold the material together. It contributes to the plasticity of the mix during forming and aids in the adhesion of the refractory material to the structure it lines. However, silicate bonds are generally weaker than spinel bonds and can degrade at high temperatures or under certain chemical conditions.

Both spinel and silicate bonds are important mechanisms in alumina refractories, influencing their mechanical strength, thermal shock resistance, chemical resistance, and overall performance in high-temperature environments. The choice of bonding mechanisms and the materials used in the refractory mix depend on the specific application requirements and the conditions the refractory lining will be exposed to during its service life.

3. Ceramic Bonding:

Ceramic bonding is the primary bonding mechanism in alumina refractories. It involves the formation of strong covalent bonds between aluminum oxide (Al₂O₃) particles. Alumina is the main component of these refractories, and its atomic structure naturally results in strong chemical bonds.

Ceramic bonding contributes to the refractory's high-temperature stability, mechanical strength, and resistance to thermal shock. It ensures the cohesion of the refractory material even under extreme temperature and thermal cycling conditions.

Alumina refractories with ceramic bonding are widely used in various industrial applications, including furnace linings, kilns, and other high-temperature equipment.

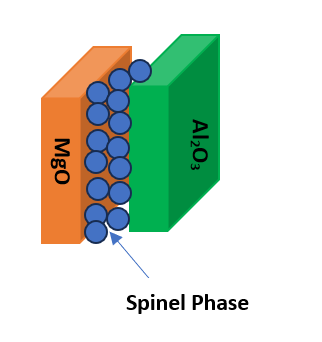

Spinel Bond:- Diffusion Bonding, Solid-Solid Reaction





Al2O3+ MgO -------> MgAl2O4 (Magnesia Aluminiate) at 1400-1600°C Temp.
